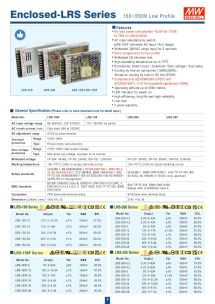

Page 5 MEAN WELL INDUSTRIAL POWER SUPPLY CATALOG

Enclosed-LRS Series 150~350W Low Profile

Features
• No load power consumption <0.5W for 150W;
<0.75W for 200W/350W
• AC input selectable by switch
(LRS-150F Universal AC input / Full range)
• Withstand 300VAC surge input for 5 seconds
• Ultra compact and 1U low profile
• Withstand 5G vibration test
o
• High operating temperature up to 70 C
• Protections: Short circuit / Overload / Over voltage / Over temp.
• Cooling by free air convection (150W/200W);
forced air cooling by built-in DC fan (350W)
• Compliance to IEC/EN60335-1(PD3) and
IEC/EN61558-1,-2-16 for household appliances (150W)
• Operating altitude up to 5000 meters
LRS-350 LRS-200 LRS-150/LRS-150F
• LED indicator for power on
• High efficiency, long life and high reliability
• Low cost
• 3 years warranty
General Specification (Please refer to www.meanwell.com for detail spec.)

Model No. LRS-150F LRS-150 LRS-200 LRS-350
AC input voltage range 85~264VAC; 120~370VDC 115 / 230VAC by switch
AC inrush current(max.) Cold start, 60A at 230VAC
DC adjustment range ±10% by potentiometer
Overload Range 110%~140%
protection Type Hiccup mode, auto-recovery
Over voltage Range 115%~145% rated output voltage
protection Type Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 4kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve) -25~+70°C (refer to output derating curve)
UL62368-1, IEC/EN62368-1, IEC/EN61558-1,
Safety standards EN61558-2-16, IEC/EN60335-1, CCC GB4943, BSMI UL62368-1, BSMI CNS14336-1, EAC TP TC 004 approved
CNS14336-1, EAC TP TC 004, AS/NZS60950.1 approved
EN55032 class B, EN55014, EN61000-3-2(120W), 3,
EMC standards EN61000-4,2,3,4,5,6,8,11, GB/T 9254, EAC TP TC 020, EAC TP TC 020, BSMI CNS13438,
BSMI CNS13438 Design refer to EN55032 class A
Connection 7P/9.5mm pitch terminal block 9P/9.5mm pitch terminal block
Dimension (LxWxH) (mm) 159x 97x 30 215x 115x 30

LRS-150 Series LRS-200 Series
Model No. Output Tol. R&N Effi. Model No. Output Tol. R&N Effi.
LRS-200-3.3 3.3V, 0~40A ±3% 150mV 83.0%
LRS-150-12 12V, 0~12.5A ±1% 150mV 87.5% LRS-200-4.2 4.2V, 0~40A ±4% 150mV 86.0%
LRS-150-15 15V, 0~10A ±1% 150mV 88.5% LRS-200-5 5V, 0~40A ±3% 150mV 87.0%
LRS-200-12 12V, 0~17A ±1.5% 150mV 87.5%
LRS-150-24 24V, 0~6.5A ±1% 200mV 89.0% LRS-200-15 15V, 0~14A ±1% 150mV 88.0%
LRS-150-36 36V, 0~4.3A ±1% 200mV 89.0% LRS-200-24 24V, 0~8.8A ±1% 150mV 89.5%
LRS-200-36 36V, 0~5.9A ±1% 200mV 89.5%
LRS-150-48 48V, 0~3.3A ±1% 200mV 90.0% LRS-200-48 48V, 0~4.4A ±1% 200mV 90.0%
LRS-150F Series LRS-350 Series

Model No. Output Tol. R&N Effi. Model No. Output Tol. R&N Effi.
LRS-150F-5 5V, 0~22A ±2% 100mV 85.0% LRS-350-3.3 3.3V, 0~60A ±4% 150mV 79.5%
150mV
4.2V, 0~60A
LRS-350-4.2
±4%
81.5%
LRS-150F-12 12V, 0~12.5A ±1% 150mV 87.5% LRS-350-5 5V, 0~60A ±3% 150mV 83.5%
LRS-150F-15 15V, 0~10A ±1% 150mV 89.0% LRS-350-12 12V, 0~29A ±1.5% 150mV 85.0%
LRS-150F-24 24V, 0~6.5A ±1% 200mV 89.0% LRS-350-15 15V, 0~23.2A ±1% 150mV 86.0%
LRS-350-24 24V, 0~14.6A ±1% 150mV 88.0%
LRS-150F-36 36V, 0~4.3A ±1% 200mV 89.0% LRS-350-36 36V, 0~9.7A ±1% 200mV 88.5%
LRS-150F-48 48V, 0~3.3A ±1% 200mV 90.0% LRS-350-48 48V, 0~7.3A ±1% 200mV 89.0%
2
