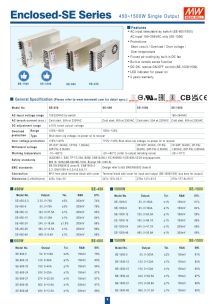

Page 8 MEAN WELL INDUSTRIAL POWER SUPPLY CATALOG

Enclosed-SE Series 450~1500W Single Output

Features
• AC input selectable by switch (SE-600/1000)
AC input 180~264VAC only (SE-1500)
• Protections:
Short circuit / Overload / Over voltage /
Over temperature
• Forced air cooling by built-in DC fan
• Built-in remote sense function
• DC OK, remote ON/OFF control (SE-1000/1500)
• LED indicator for power on
• 2 years warranty
SE-1500 SE-1000 SE-600 SE-450

General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. SE-450 SE-600 SE-1000 SE-1500
AC input voltage range 115/230VAC by switch 180~264VAC
AC inrush current (max.) Cold start, 55A at 230VAC Cold start, 60A at 230VAC Cold start, 55A at 230VAC Cold start, 60A at 230VAC
DC adjustment range ±10% rated output voltage
Overload Range 105%~150% 105%~125%
protection Type Shut down o/p voltage, re-power on to recover
Over voltage protection 115%~145% 115%~140% Shut down o/p voltage, re-power on to recover
I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, I/P-O/P: 3kVAC, I/P-FG: I/P-O/P: 3kVAC, I/P-FG:
Withstand voltage
O/P-FG: 0.5kVAC 2kVAC, O/P-FG: 0.5kVAC 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature -10~+60°C -20~+60°C (refer to output derating curve) -20~+70°C
Safety standards UL62368-1, EAC TP TC 004, BSMI CNS14336-1 approved
EN55032 class B, EN61000-3-2,3, Design refer to EN55032 class B
EMC standards
EN61000-4-2,3,4,5,6,8,11
Connection 9P/11mm pitch terminal block with cover Terminal block with cover for input and output (SE-1000/1500: bus bars for output)
Dimension (LxWxH)(mm) 218x 105x 41 247x 127x 63.5 278x 127x 63.5 278x 177.8x 63.5
Case No. 986A 926A 935B 982A
Packing 12pcs / 16kg 6pcs / 13.4kg 6pcs / 16kg 4pcs / 14.2kg
450W SE-450 1000W SE-1000

Model No. Output Tol. R&N Effi. Model No. Output Tol. R&N Effi.
SE-450-3.3 3.3V, 0~75A ±3% 200mV 74% SE-1000-5 5V, 0~150A ±1% 150mV 81%
SE-450-5 5V, 0~75A ±3% 200mV 78%
SE-1000-9 9V, 0~100A ±1% 150mV 84%
SE-450-12 12V, 0~37.5A ±1% 200mV 83%
SE-1000-12 12V, 0~83.3A ±1% 150mV 85%
SE-450-15 15V, 0~30A ±1% 200mV 84%
SE-1000-15 15V, 0~66.7A ±1% 150mV 86%
SE-450-24 24V, 0~18.8A ±1.5% 200mV 86%
SE-1000-24 24V, 0~41.7A ±1% 200mV 88%
SE-450-36 36V, 0~12.5A ±1% 200mV 86%
SE-1000-48 48V, 0~20.8A ±1% 200mV 89%
SE-450-48 48V, 0~9.4A ±1% 200mV 88%
600W SE-600 1500W SE-1500

Model No. Output Tol. R&N Effi. Model No. Output Tol. R&N Effi.
SE-600-5 5V, 0~100A ±2% 150mV 78% SE-1500-5 5V, 0~300A ±2% 150mV 81%
SE-600-12 12V, 0~50A ±1% 150mV 83% SE-1500-12 12V, 0~125A ±1% 150mV 85%
SE-600-15 15V, 0~40A ±1% 150mV 84%
SE-1500-15 15V, 0~100A ±1% 150mV 85%
SE-600-24 24V, 0~25A ±1% 150mV 87%
SE-1500-24 24V, 0~62.5A ±1% 150mV 87%
SE-600-27 27V, 0~22.2A ±1% 150mV 87%
SE-600-36 36V, 0~16.6A ±1% 200mV 87% SE-1500-27 27V, 0~55.6A ±1% 150mV 88%
SE-600-48 48V, 0~12.5A ±1% 200mV 88% SE-1500-48 48V, 0~31.3A ±1% 150mV 89%
