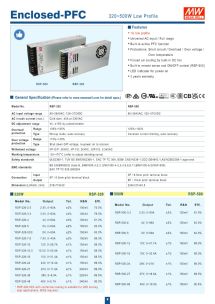

Page 11 MEAN WELL INDUSTRIAL POWER SUPPLY CATALOG

Enclosed-PFC 320~500W Low Profile

Features

• 1U low profile
• Universal AC input / Full range
• Built-in active PFC function
• Protections: Short circuit / Overload / Over voltage /
Over temperature
• Forced air cooling by built-in DC fan
• Built-in remote sense and ON/OFF control (RSP-500)
• LED indicator for power on
• 3 years warranty
RSP-500 RSP-320

General Specification (Please refer to www.meanwell.com for detail spec.)
(RSP-320 only)
Model No. RSP-320 RSP-500
AC input voltage range 88~264VAC; 124~370VDC 85~264VAC; 120~370VDC
AC inrush current(max.) Cold start, 40A at 230VAC
DC adjustment range Vo: ±10% by potentiometer
Overload Range 105%~135% 105%~130%
protection Type Hiccup mode, auto-recovery Constant current limiting, auto-recovery
Over voltage Range 115%~145%
protection Type Shut down O/P voltage, re-power on to recover

Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; CCC GB4943 approved for RSP-320 only
EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020, EN61000-6-2(RSP-500),
EMC standards
GB9254, GB17625.1(RSP-320 only)
Input 3P / 9.5mm pitch terminal block
Connection 9P / 9.5mm pitch terminal block
Output 6P / 11mm pitch terminal block
Dimension (LxWxH) (mm) 215x115x30 230x127x40.5
Case No. 207A 226A

320W RSP-320 500W RSP-500

Model No. Output Tol. R&N Effi. Model No. Output Tol. R&N Effi.
RSP-320-2.5 2.5V, 0~60A ±2% 100mV 75.5% RSP-500-3.3 3.3V, 0~90A ±2% 120mV 81.0%
RSP-320-3.3 3.3V, 0~60A ±2% 100mV 79.5% RSP-500-4 4V, 0~90A ±2% 120mV 83.0%
RSP-500-5 5V, 0~90A ±2% 150mV 84.0%
RSP-320-4 4V, 0~60A ±2% 100mV 81.0%
RSP-500-12 12V, 0~41.7A ±1% 150mV 88.0%
RSP-320-5 5V, 0~60A ±2% 150mV 83.0%
RSP-500-15 15V, 0~33.4A ±1% 150mV 88.0%
*RSP-320-5CC 5V, 0~60A ±2% 150mV 83.0%
RSP-500-24 24V, 0~21A ±1% 150mV 89.0%
RSP-320-7.5 7.5V, 0~40A ±2% 150mV 88.0%
RSP-500-27 27V, 0~18.6A ±1% 150mV 89.5%
RSP-320-12 12V, 0~26.7A ±1% 150mV 88.0%
RSP-500-48 48V, 0~10.5A ±1% 150mV 90.5%
RSP-320-13.5 13.5V, 0~23.8A ±1% 150mV 88.0%
RSP-320-15 15V, 0~21.4A ±1% 150mV 88.5% We provide specification, drawing, test report and more
information, please visit our website —
RSP-320-24 24V, 0~13.4A ±1% 150mV 89.0% http://www.meanwell.com
RSP-320-27 27V, 0~11.9A ±1% 200mV 89.0%
Best products also need best service.
RSP-320-36 36V, 0~8.9A ±1% 220mV 89.5% We have authorized distributors all over the world. They have
sufficient stock for your prompt delivery. Also, they can offer
RSP-320-48 48V, 0~6.7A ±1% 240mV 90.0% you technical support & RMA services. Please contact your
local distributors for more product information. You can also
* RSP-320-5CC with conformal coating is suitable for LED moving contact us at info@meanwell.com for information of your local
sign applications, MOQ required. distributors.
